IG-5 Rotator — 400 lb Heavy-Duty Motorized Display Turntable

IG-5 Rotator — 400 lb Heavy-Duty Motorized Display Turntable

Regular price $821.00 USD
Regular price Sale price $821.00 USD
Sale Sold out
Shipping calculated at checkout.
Rotating Power
Rotation Speed

Templates

Shipping & Returns

Please see our policies for details:

Shipping Information

Returns and Exchanges

Dimensions

Fabric Care Instructions

General Tips:

-Wrinkles can be removed
from fabric with a cool
iron or steamer.

-Fabric can be machine
washed - use cold water,
delicate cycle.

-Do NOT bleach fabric

-Do NOT tumble dry. Fabric
must be air dried on the frame
to prevent shrinking.

Handling Tips:

1. If your exhibit fabric has a zipper, please keep zipper closed for storage.
2. Wrinkles can be removed with cool iron or fabric steamer.
3. Fabric should NOT be stored when damp or wet. Store in cool, dry area.
4. For storing graphics please remove from plastic packaging that was
provided and keep fabric in cool/dry place.

Washing:

1. Your fabric graphic can be machine washed. Remove any
hardware attached to the fabric prior to cleaning. Use MILD
soap and cool water. Air dry fabric, dry on frame if frame
is available.
2. Fabric must be COMPLETELY dry prior to storing.
3. DO NOT DRY CLEAN

Stain Treatment:

1. Treat stain from backside of fabric.
2. Remove as much of debris as possible with a soft bristle
brush (do NOT rub too hard)
3. Use a clean, lint-free white cloth. Lightly pat the stain from
the outside moving in (to keep stain from spreading)
4. If a cleaning solution is used, rinse the area well with water to
ensure NO solution is left on fabric.
5. Most stains can be treated with household fabric stain removers.
It is ALWAYS important to test how the solution will react to the
fabric. This can be tested by dabbing solution to a small corner of
the fabric. Most household cleaners will provide treatment
instructions depending on the type of stain.

View full details

SKU: A4D-DYN-2374

PLEASE NOTE: We offer a complimentary consultation to ensure you receive the right product for your needs. Please fill out this form and we will reach out with more info. If you choose to waive the consultation, motors are not eligible for return, exchange, or refund.

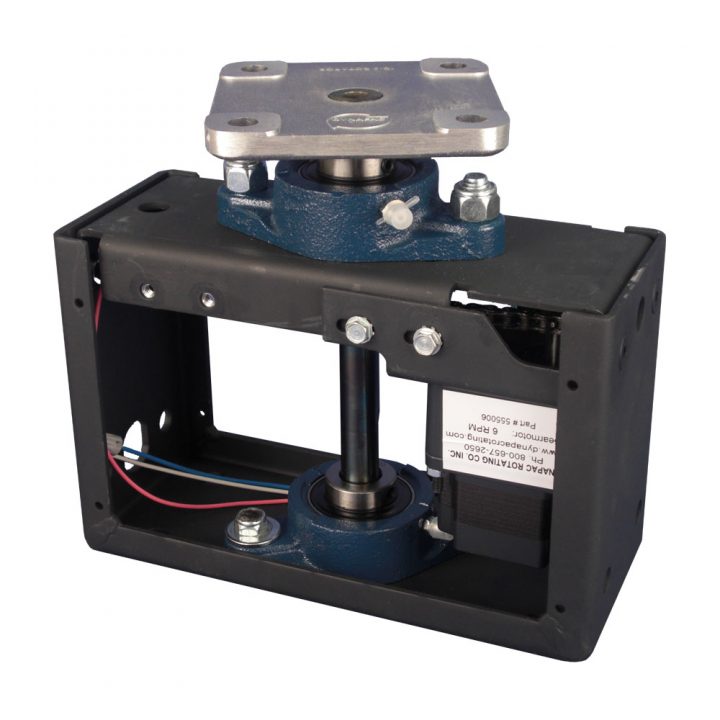

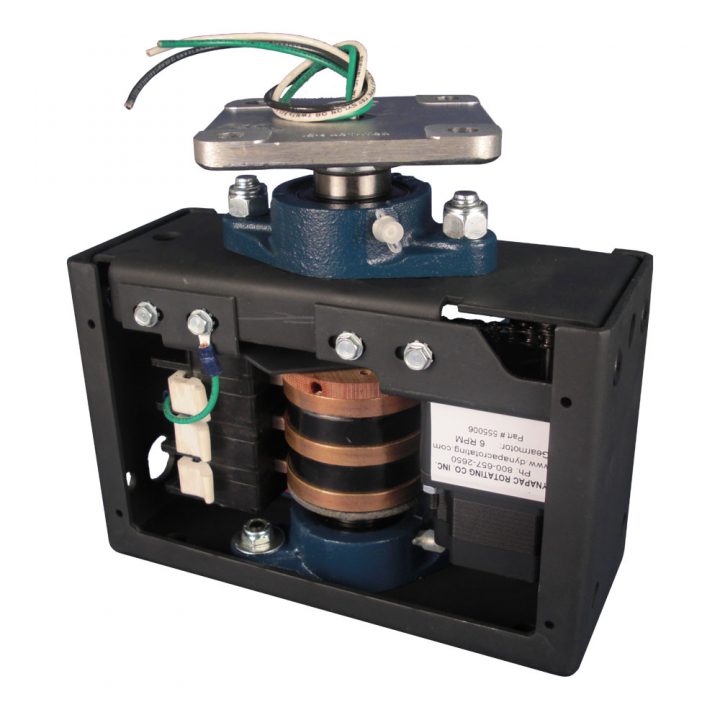

The IG-5 Rotator is the heavy-duty workhorse of the IG frame range, built for continuous 24-hour rotation. A rugged chain drive, a 10-gauge steel frame and two heavy-duty bearings let it rotate up to 400 lb (181.4 kg) top-mounted or 300 lb (136 kg) suspended, carrying displays up to 5 ft x 5 ft (1.5 m x 1.5 m).

IG-5 specifications

Model IG-5
Type Indoor frame-style rotator, heavy duty
Compressive (top-load) capacity 400 lb / 181.4 kg
Hanging capacity 300 lb / 136 kg
Max recommended display size 5 ft x 5 ft / 1.5 m x 1.5 m
Drive Chain drive, two heavy-duty bearings
Frame 10-gauge steel
Duty cycle Continuous 24-hour rotation
Power supply 110 VAC standard (other voltages on request)
Shipping dimensions 12" x 12" x 6"
Shipping weight 19 lb / 8.62 kg
Lead time 24 hours
Note Running above 2 RPM reduces torque and may stop rotation

What the IG-5 is used for

  • Permanent retail installations that rotate all day, every day
  • Rotating car, motorcycle and equipment displays
  • Heavy illuminated signs and large showroom fixtures
  • Museum and visitor-centre exhibits on continuous duty

Choosing the right rotator

The IG-5 is the largest IG frame rotator — compare with the IG-4 (300 lb) and IG-2 (150 lb). For suspended displays use the IG-5 Hanging Rotator, or the IG-5 Hang Variable Speed with collector ring when you need adjustable speed. Add louvered covers for a finished look.

IG-5 — frequently asked questions

Can the IG-5 rotator run 24 hours a day?

Yes. The IG-5 was designed specifically for continuous 24-hour trouble-free rotation, using a chain drive and two heavy-duty bearings.

How much weight can the IG-5 rotator turn?

Up to 400 lb (181.4 kg) as a top load, or 300 lb (136 kg) suspended.

What speed should the IG-5 run at?

Keep it at or below 2 RPM. Running faster reduces available torque and the rotator may stall.

Specs / CAD Files:





#DYN-155001
