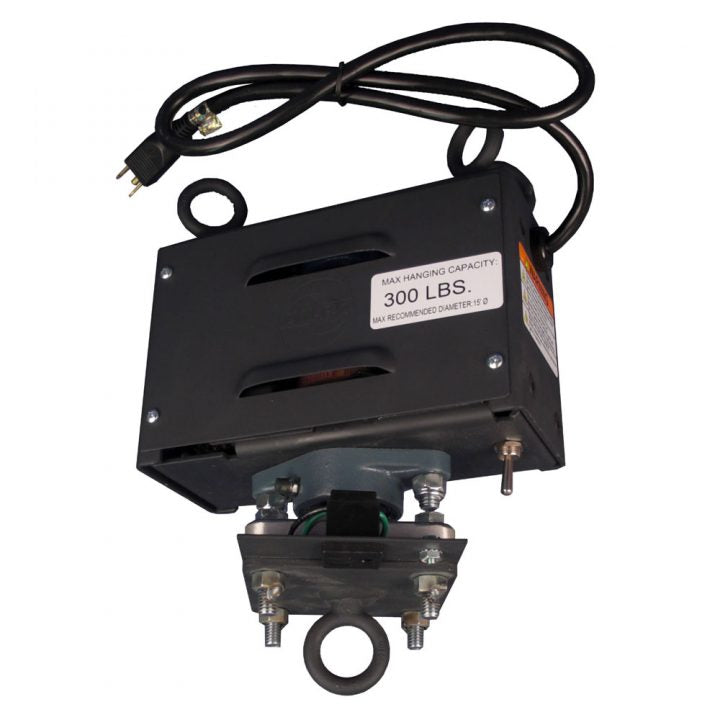

• IG-5 hanging rotator: black steel frame ceiling banner rotator with top hanging hook and power cord, 300 lb
1 1

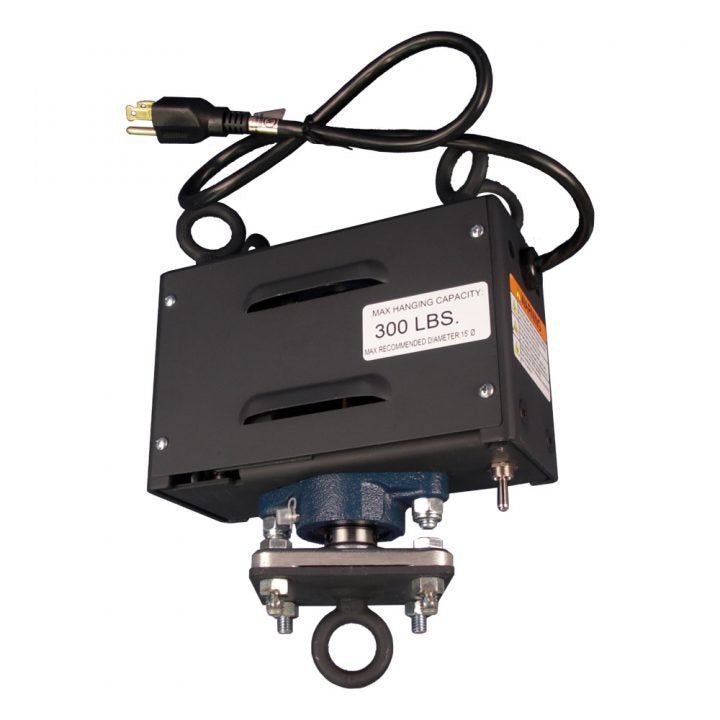

IG-5 Hanging Rotator — 300 lb Banner Rotator for 15 ft Displays

IG-5 Hanging Rotator — 300 lb Banner Rotator for 15 ft Displays

$972.00 USD
$972.00 USD
Sale Sold out
Shipping calculated at checkout.
Rotating Power
Rotation Speed

Templates

Shipping & Returns

Please see our policies for details:

Shipping Information

Returns and Exchanges

Dimensions

Fabric Care Instructions

General Tips:

-Wrinkles can be removed
from fabric with a cool
iron or steamer.

-Fabric can be machine
washed - use cold water,
delicate cycle.

-Do NOT bleach fabric

-Do NOT tumble dry. Fabric
must be air dried on the frame
to prevent shrinking.

Handling Tips:

1. If your exhibit fabric has a zipper, please keep zipper closed for storage.
2. Wrinkles can be removed with cool iron or fabric steamer.
3. Fabric should NOT be stored when damp or wet. Store in cool, dry area.
4. For storing graphics please remove from plastic packaging that was
provided and keep fabric in cool/dry place.

Washing:

1. Your fabric graphic can be machine washed. Remove any
hardware attached to the fabric prior to cleaning. Use MILD
soap and cool water. Air dry fabric, dry on frame if frame
is available.
2. Fabric must be COMPLETELY dry prior to storing.
3. DO NOT DRY CLEAN

Stain Treatment:

1. Treat stain from backside of fabric.
2. Remove as much of debris as possible with a soft bristle
brush (do NOT rub too hard)
3. Use a clean, lint-free white cloth. Lightly pat the stain from
the outside moving in (to keep stain from spreading)
4. If a cleaning solution is used, rinse the area well with water to
ensure NO solution is left on fabric.
5. Most stains can be treated with household fabric stain removers.
It is ALWAYS important to test how the solution will react to the
fabric. This can be tested by dabbing solution to a small corner of
the fabric. Most household cleaners will provide treatment
instructions depending on the type of stain.

View full details

SKU: A4D-DYN-2366

PLEASE NOTE: We offer a complimentary consultation to ensure you receive the right product for your needs. Please fill out this form and we will reach out with more info. If you choose to waive the consultation, motors are not eligible for return, exchange, or refund.

The IG-5 Hanging Rotator is a heavy-duty ceiling banner rotator built for continuous 24-hour rotation. A rugged chain drive, a 10-gauge steel frame and two heavy-duty bearings carry suspended displays up to 300 lb (136 kg) and 15 ft (4.6 m) in diameter — the standard choice for large rotating banners in convention centres and arenas.

IG-5 Hanging Rotator specifications

Model IG-5 HANG
Type Indoor hanging / ceiling banner rotator, heavy duty
Hanging capacity 300 lb / 136 kg
Compressive capacity Not rated — hanging only
Max recommended display size 15 ft / 4.6 m diameter
Drive Chain drive, two heavy-duty bearings
Frame 10-gauge steel
Duty cycle Continuous 24-hour rotation
Power supply 110 VAC standard (other voltages on request)
Shipping dimensions 14" x 14" x 8"
Shipping weight 19 lb / 8.62 kg
Lead time 24 hours

What the IG-5 Hanging Rotator is used for

  • Large rotating banners in convention and exhibition centres
  • Arena and stadium suspended sponsor signage
  • Airport and shopping-centre hanging displays up to 15 ft
  • Permanent installations that rotate around the clock

Choosing the right hanging rotator

For adjustable speed and a built-in collector ring, see the IG-5 Hang Variable Speed with Collector Ring. Smaller alternatives are the IG-4 Hanging Rotator (200 lb) and IG-2 Hanging Rotator (100 lb). The floor-standing version is the IG-5 Rotator.

IG-5 Hanging Rotator — frequently asked questions

How big a hanging banner can the IG-5 rotate?

Up to 15 ft (4.6 m) in diameter, weighing no more than 300 lb (136 kg).

Can the IG-5 Hanging Rotator run continuously?

Yes. It was designed specifically for continuous 24-hour trouble-free rotation, using a chain drive and heavy-duty bearings.

Does it come with variable speed?

Not as standard. The IG-5 Hang Variable Speed model adds a 0–2 RPM DC speed package with a speed knob and direction switch.

Specs / CAD Files:





#DYN-155001 HANG
