SKU: A4D-DYN-2370
PLEASE NOTE: We offer a complimentary consultation to ensure you receive the right product for your needs. Please fill out this form and we will reach out with more info. If you choose to waive the consultation, motors are not eligible for return, exchange, or refund.

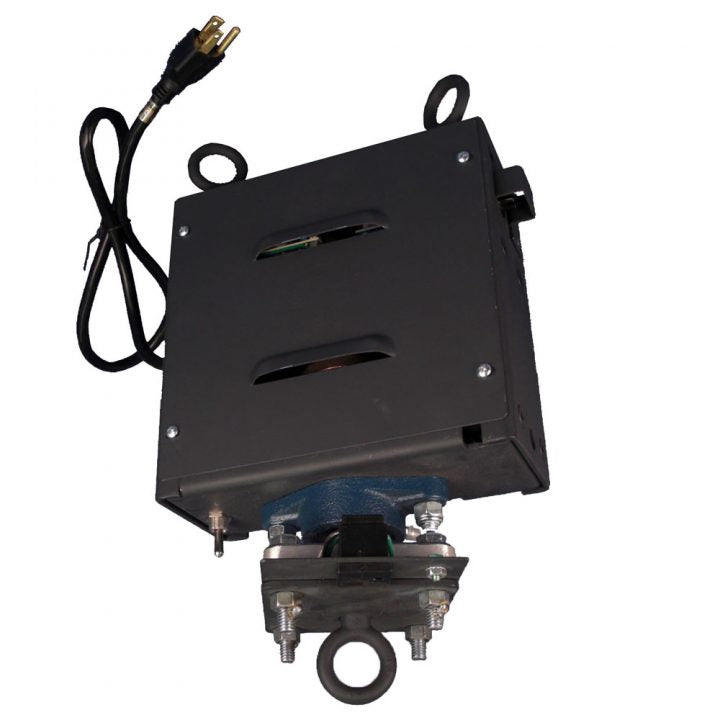

The IG-5 Hang Variable Speed Rotator with Collector Ring is the convention-centre standard for hanging rotating banner signs — a “one size fits all” unit with the same 300 lb (136 kg) capacity as the standard IG-5 HANG, plus a DC variable speed package built in. A knob on the side sets speed anywhere from 0 to 2 RPM and a switch reverses direction. It is roughly 3 inches taller than the standard IG-5 but otherwise identical: plug it in, pick a speed, and it runs.
IG-5 Hang Variable Speed specifications
| Model | IG-5 HANG Variable Speed w/ Collector Ring |
|---|---|
| Type | Indoor hanging banner rotator, variable speed |
| Hanging capacity | 300 lb / 136 kg |
| Compressive capacity | Not rated — hanging only |
| Max recommended display size | 15 ft x 15 ft / 4.6 m x 4.6 m |
| Rotation speed | 0–2 RPM, variable (DC speed package) |
| Controls | Side-mounted speed knob, direction switch |
| Collector ring | Included — powers the display through full rotation |
| Height vs standard IG-5 HANG | Approx. 3 inches taller |
| Shipping dimensions | 19" x 19" x 8" |
| Shipping weight | 25 lb / 11.34 kg |
| Lead time | 24 hours |
What the IG-5 Hang Variable Speed is used for
- Convention centres standardising on one hanging rotator for all clients
- Rotating illuminated banners that need power delivered through the rotation
- Exhibits where rotation speed must be tuned on site
- Double-sided hanging signs needing reversible direction
Choosing the right hanging rotator
This is the variable-speed version of the IG-5 Hanging Rotator. If a fixed speed is acceptable, the standard unit costs less. Lighter options: IG-4 Hanging Rotator and M-40 Hanging Rotator. See all trade show rotators.
IG-5 Hang Variable Speed — frequently asked questions
What does the collector ring do?
It transfers electrical power to the rotating display, so a lit or powered sign keeps working through unlimited continuous rotation without twisting its cable.
What speed range does the IG-5 Hang Variable Speed offer?
0 to 2 RPM, set with a knob on the side of the unit. A separate switch reverses direction.
How does it differ from the standard IG-5 HANG?
Same 300 lb capacity and 15 ft display rating. It adds the DC variable speed package and collector ring, and stands about 3 inches taller.
Specs / CAD Files:
#DYN-155001 32AHANGVAR
