SKU: A4D-DYN-2359
PLEASE NOTE: We offer a complimentary consultation to ensure you receive the right product for your needs. Please fill out this form and we will reach out with more info. If you choose to waive the consultation, motors are not eligible for return, exchange, or refund.
The IR-650 is an updated, higher-torque version of the IR-600 with a more robust design, rated to 650 lb (297.8 kg) over displays up to 6 ft x 6 ft (1.8 m x 1.8 m). It is completely interchangeable with existing IR-300 and IR-600 installations, and comes with pre-tapped mounting holes and an 8-foot power cord as standard. This unit is not for hanging applications.
IR-650 specifications
| Model | IR-650 |
|---|---|
| Type | Heavy-duty display turntable |
| Compressive (top-load) capacity | 650 lb / 297.8 kg |
| Hanging capacity | None — not for hanging |
| Max recommended display size | 6 ft x 6 ft / 1.8 m x 1.8 m |
| Compatibility | Interchangeable with existing IR-300 / IR-600 installations |
| Mounting | Pre-tapped holes in the turntable |
| Included | 8 ft power cord |
| Shipping dimensions | 19" x 19" x 8" |
| Shipping weight | 28 lb / 12.7 kg |
| Lead time | 24 hours |
| Note | Running above 2 RPM reduces torque and may stop rotation |
What the IR-650 is used for
- Upgrading an existing IR-300 or IR-600 installation
- Heavy rotating showroom and dealership displays
- Permanent fixtures carrying furniture or machinery
- Rotating bases built into custom joinery
Choosing the right display turntable
The IR-650 and IR-800 are the current updated units; both replace the IR-300 and IR-600 directly. Full range: IR-10 (10 lb), IR-20 (20 lb), IR-50 (50 lb), IR-100 (100 lb), IR-300 (300 lb), IR-600 (600 lb), IR-800 (800 lb).
IR-650 — frequently asked questions
Will the IR-650 replace my IR-600?
Yes. The IR-650 is completely interchangeable with existing IR-300 and IR-600 installations.
What speed should the IR-650 run at?
At or below 2 RPM. Running faster reduces torque and the unit may stall.
Does it come with a power cord?
Yes, an 8-foot cord is standard.
Specs / CAD Files:

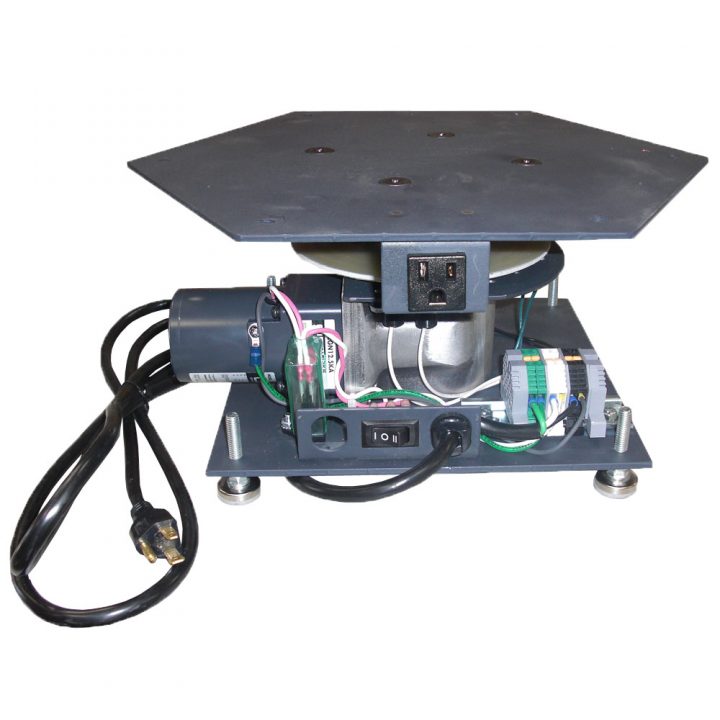

- IR-650 With Rotating Wires Specifications

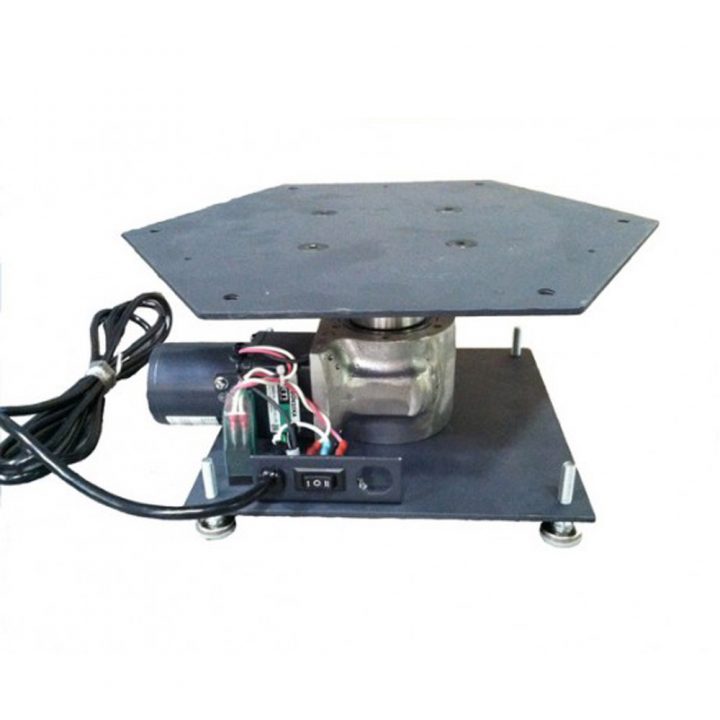

- IR-650 Without Rotating Wires Specifications
- IR-650 Installation and Maintenance
- IR-650 With Rotating Wires eDrawing
#DYN-153015 6W
