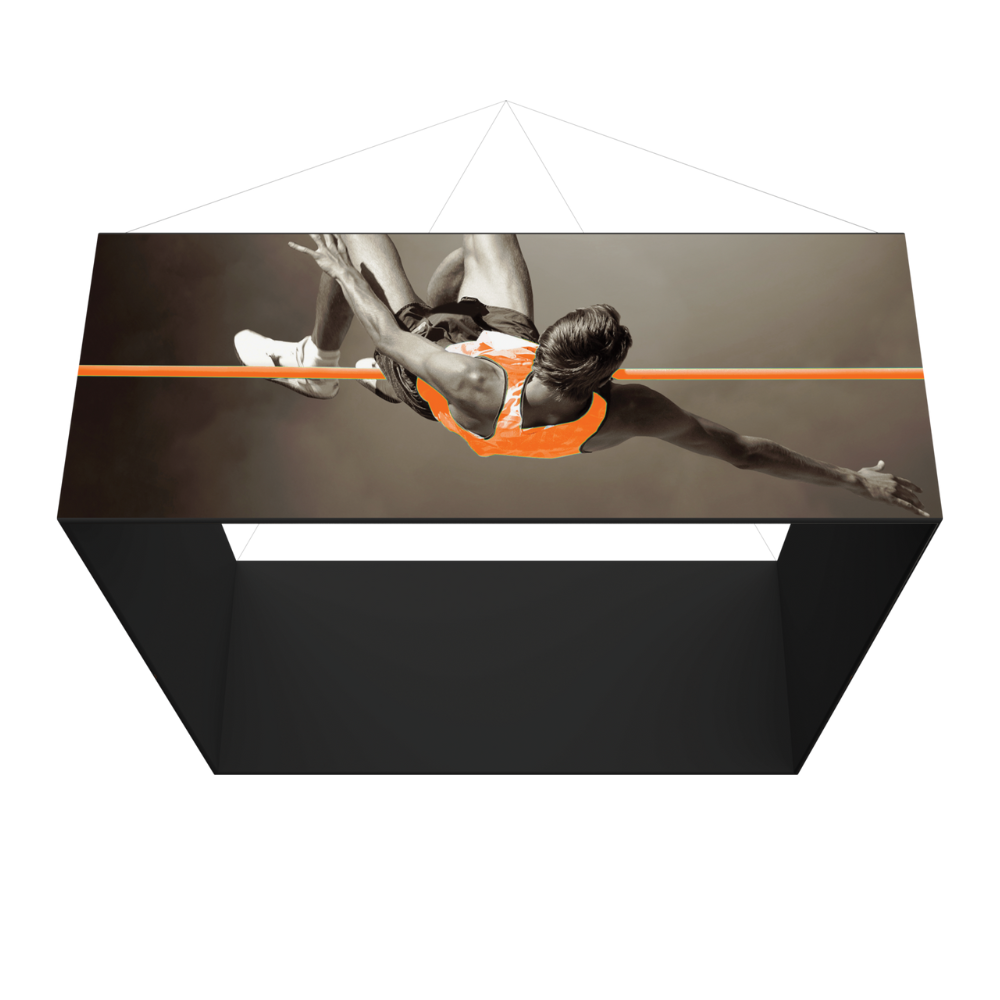

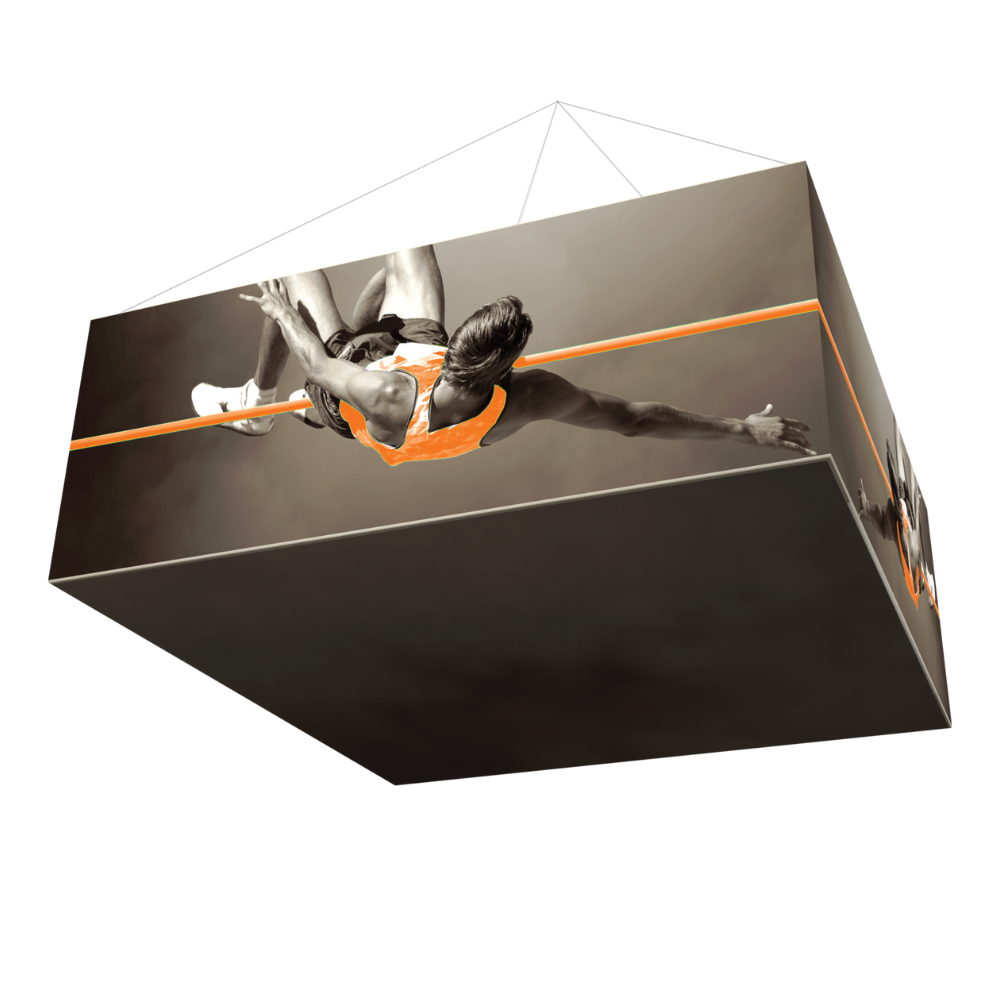

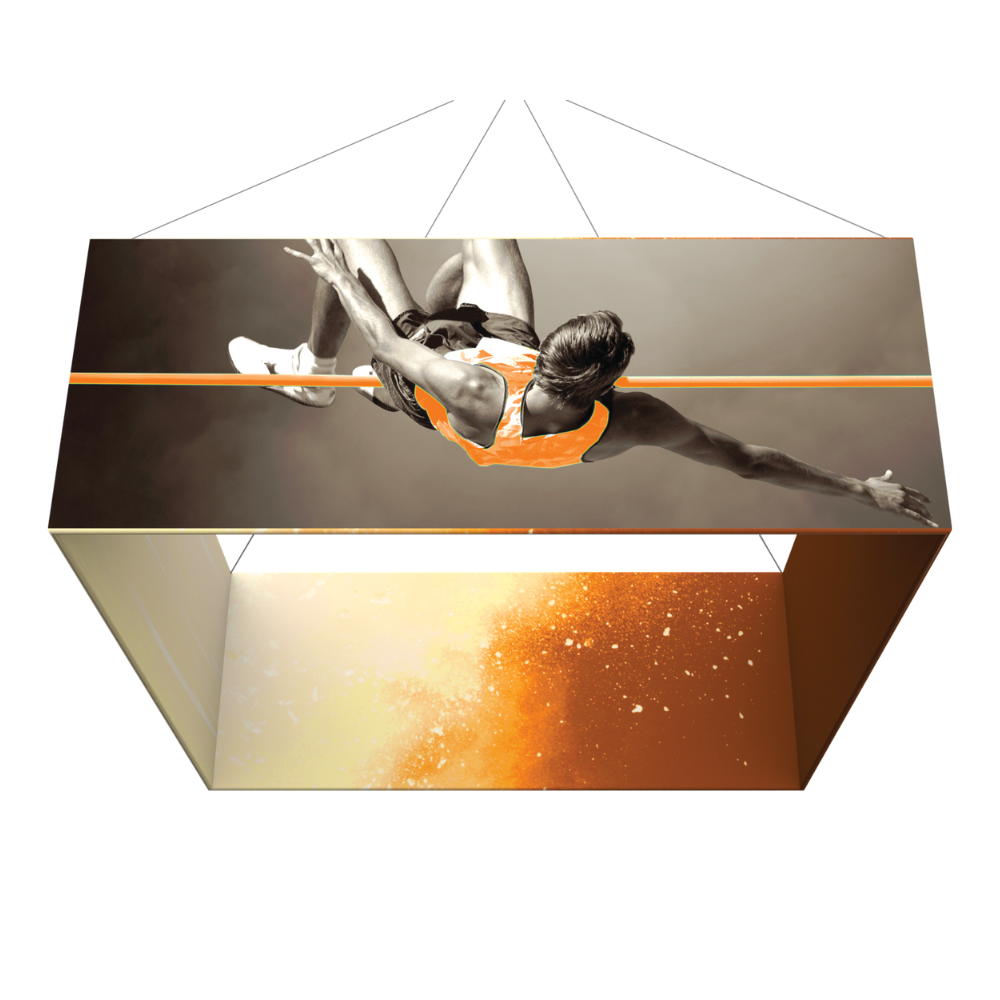

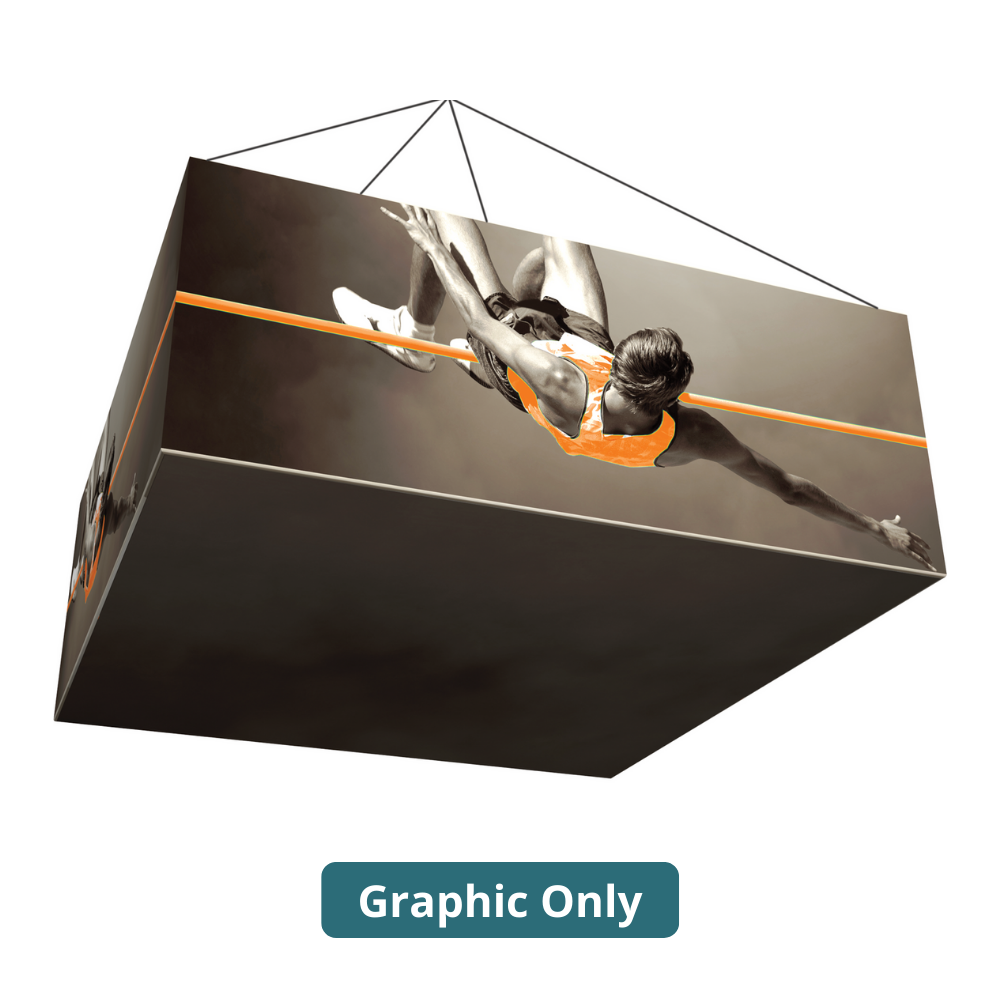

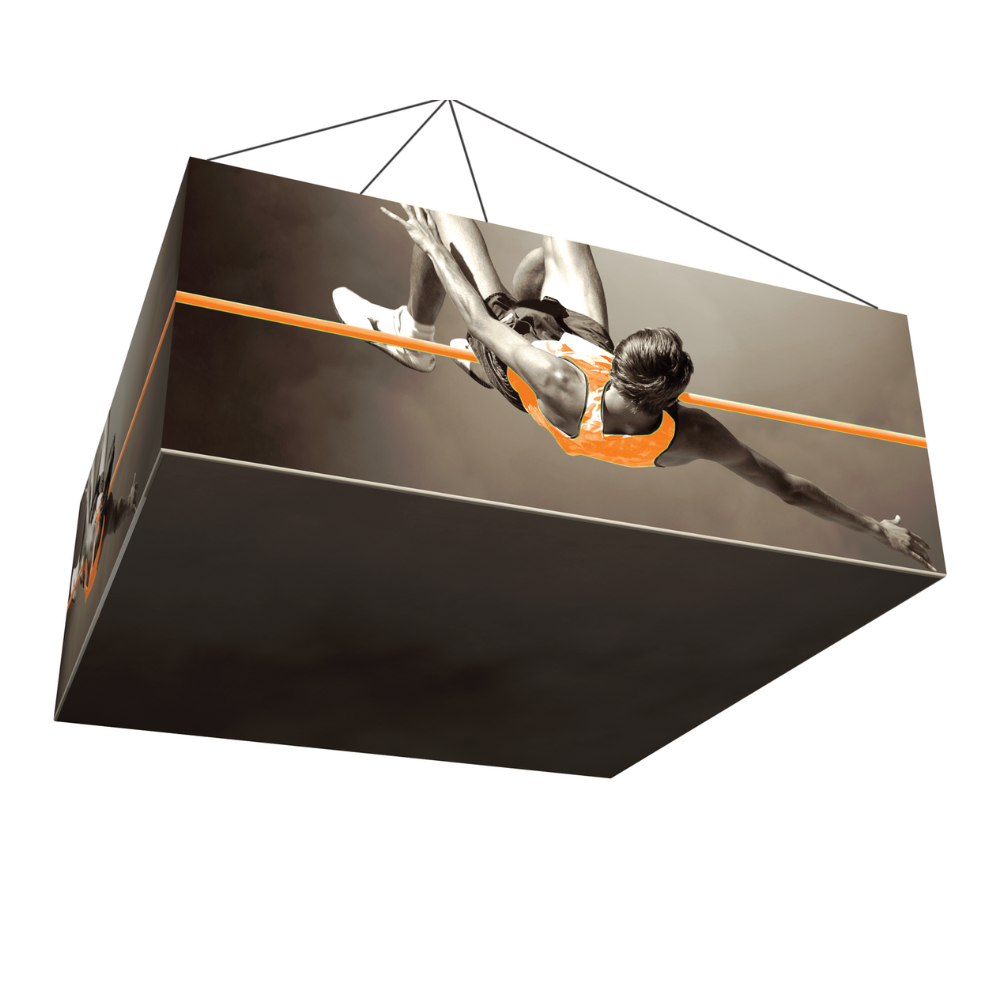

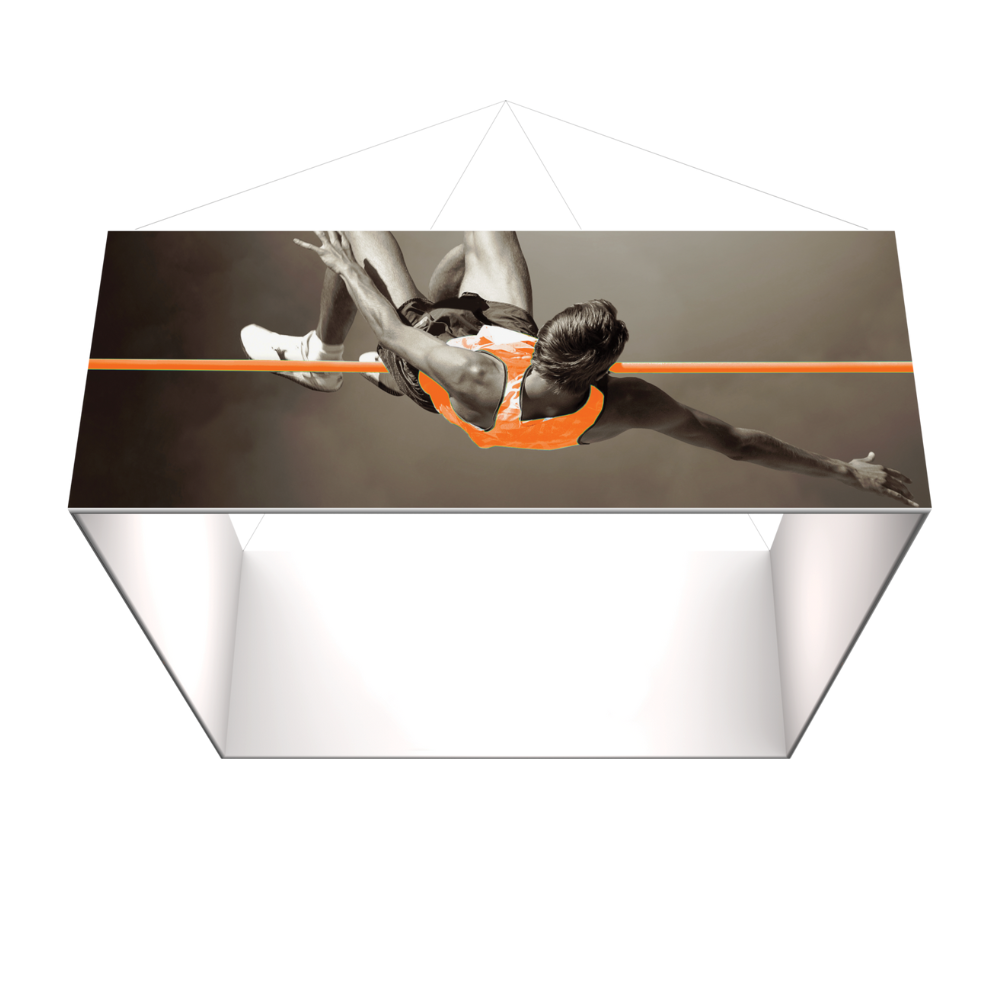

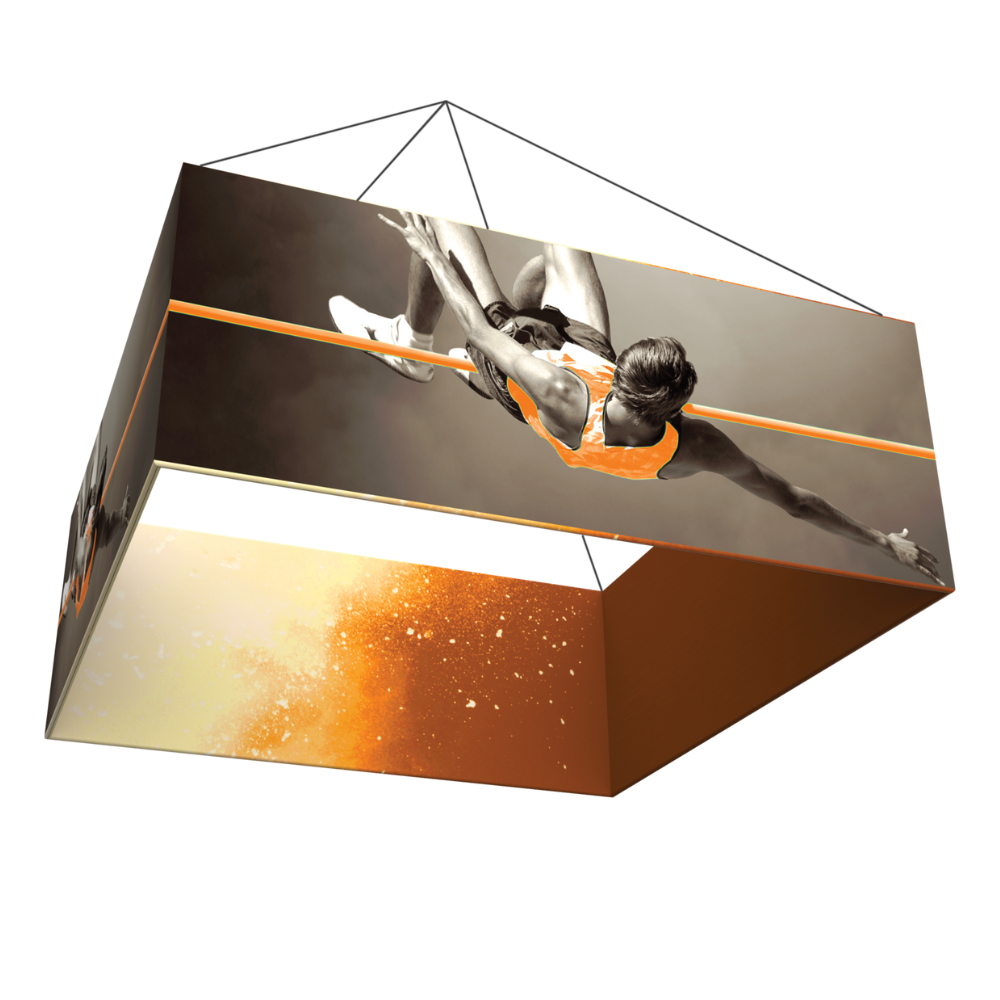

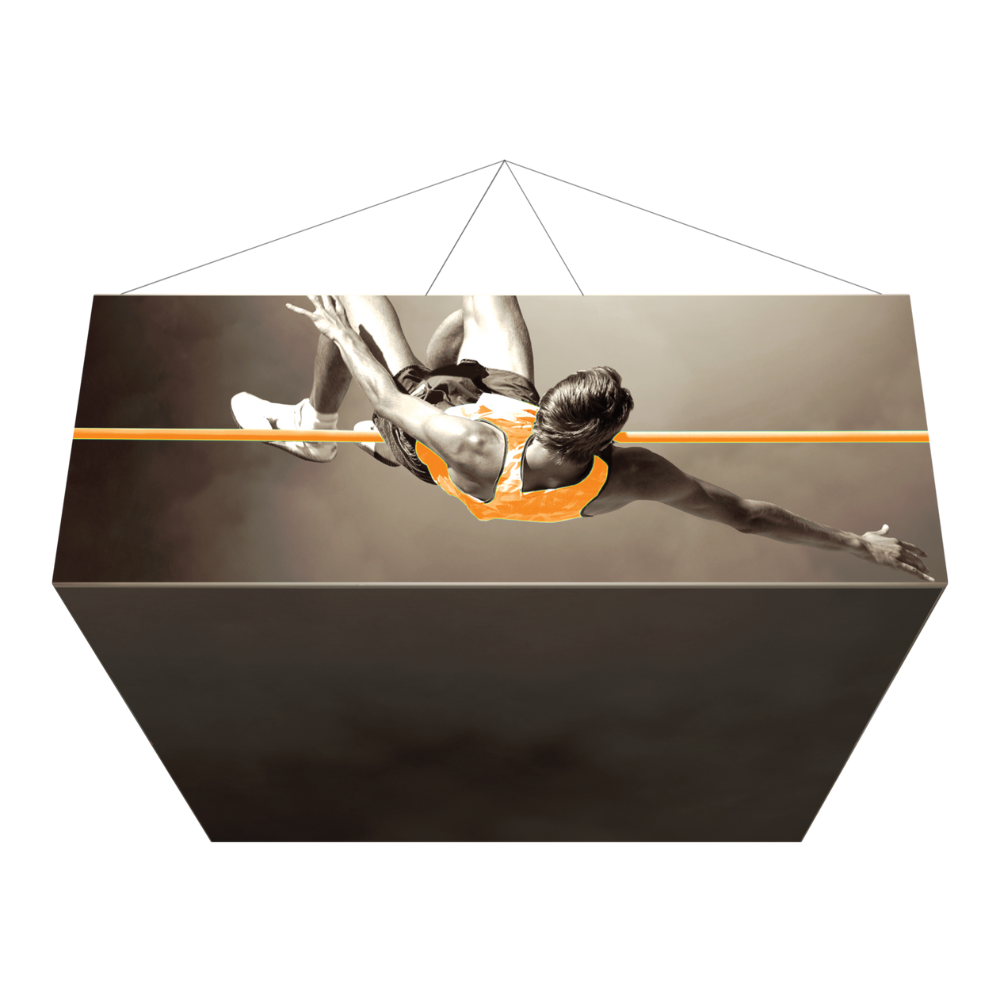

8ft x 5ft Formulate Master 3D Hanging Structure Square Single-Sided w/ Printed Bottom (Graphic Only)

8ft x 5ft Formulate Master 3D Hanging Structure Square Single-Sided w/ Printed Bottom (Graphic Only)

Regular price $2,101.00 USD
Regular price Sale price $2,101.00 USD
Sale Sold out

Templates

Shipping & Returns

Please see our policies for details:

Shipping Information

Returns and Exchanges

Dimensions

Fabric Care Instructions

General Tips:

-Wrinkles can be removed
from fabric with a cool
iron or steamer.

-Fabric can be machine
washed - use cold water,
delicate cycle.

-Do NOT bleach fabric

-Do NOT tumble dry. Fabric
must be air dried on the frame
to prevent shrinking.

Handling Tips:

1. If your exhibit fabric has a zipper, please keep zipper closed for storage.
2. Wrinkles can be removed with cool iron or fabric steamer.
3. Fabric should NOT be stored when damp or wet. Store in cool, dry area.
4. For storing graphics please remove from plastic packaging that was
provided and keep fabric in cool/dry place.

Washing:

1. Your fabric graphic can be machine washed. Remove any
hardware attached to the fabric prior to cleaning. Use MILD
soap and cool water. Air dry fabric, dry on frame if frame
is available.
2. Fabric must be COMPLETELY dry prior to storing.
3. DO NOT DRY CLEAN

Stain Treatment:

1. Treat stain from backside of fabric.
2. Remove as much of debris as possible with a soft bristle
brush (do NOT rub too hard)
3. Use a clean, lint-free white cloth. Lightly pat the stain from
the outside moving in (to keep stain from spreading)
4. If a cleaning solution is used, rinse the area well with water to
ensure NO solution is left on fabric.
5. Most stains can be treated with household fabric stain removers.
It is ALWAYS important to test how the solution will react to the
fabric. This can be tested by dabbing solution to a small corner of
the fabric. Most household cleaners will provide treatment
instructions depending on the type of stain.

View full details

SKU: A4D-OR-7139

8ft x 5ft Formulate Master 3D Hanging Structure Square Single-Sided w/ Printed Bottom (Graphic Only)

Formulate® Master 3D Square fabric hanging structures are made in the USA and combine state-of-the-art zipper pillowcase dye-sublimated stretch fabric coverings with superior quality, lightweight aluminum tube frames to provide unique design, functionality, and style. Various size options are available; cables are included. Stretch fabric graphics are hand-sewn and durable; liners are included.

-Formulate Master 3D Square hanging structures come in configurations with 8', 10', 12', 14', 16', 18' or 20' sides and a height of 2', 3', 4', 5' or 6'
-Shapes 12' wide and under are constructed with 30mm (1 1/8") tubes and push-button connectors for simple assembly
-Shapes 14' wide and over are constructed with 50mm (2") tubes and internal expanding spigot connectors for unmatched structural integrity
-Engineer certified (structural engineer certificate available upon request)
-Zippered pillowcase fabric graphic options include: double-sided, single-sided (printed outer panel with white or black inner panel), or single-sided with printed bottom panel
-Bottom zip-in graphic panels offered on 8', 10', 12', and 14' diameter options only
-All pillowcase graphics come standard with opaque liner
-Comes standard with hanging hardware, bags and heavy-duty shipping and storage box(es)
-Square hanging structures can also be shipped in expandable rugged molded shipping cases (OCE; sold separately). Squares with a 14' -16' width need a second box or OCE case; Larger hanging structures ship in 3 boxes/cases.
-Collapses to a fraction of its size
-Easy to store and ship
-Quick to set up
-Shipping weight and dimensions vary by size. Please see instruction sheets for details.

More Information

Width 8'
Height 5'
Shape Square
Dimensions 3D
Assembled Dimensions 96”W X 60”H
Shipping Dimensions Ships In: 1 x BOX (61"L x 13"H x 13"D) 1 x BOX (24"L x 14"H x 8"D)
Approximate Shipping Weight 82 lbs / 38 kg

Instruction Sheets

Graphic Templates




#ORB-SQU-0805-GPBP
